New Century 555 Ch= 500P with 2A7
Airzone (1931) Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- Airzone (1931) Ltd.; Sydney
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164092
The Sydney Morning Herald, Wed 9 Aug 1933
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

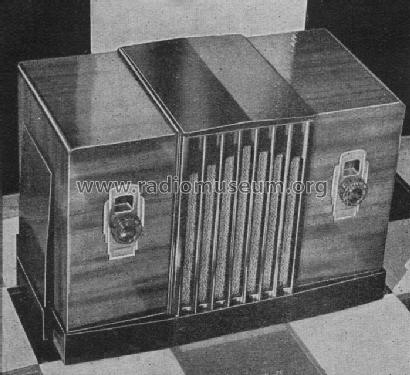

- Model: New Century 555 Ch= 500P [with 2A7] - Airzone 1931 Ltd.; Sydney
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 400 x 270 x 210 mm / 15.7 x 10.6 x 8.3 inch
- Notes
-
The Airzone "New Century" was available in two different cabinets: veneer and laquer.
See also New Century 555, which might be an earlier production run employing with mixer/osc valve 57 instead of 2A7.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 18.50 Aus£
- Mentioned in
- Foxradio 1934 catalogue
- Literature/Schematics (1)
- -- Original prospect or advert (The Sydney Morning Herald, Wed 9 Aug 1933)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
