AR-160 (Japan 101)
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95638

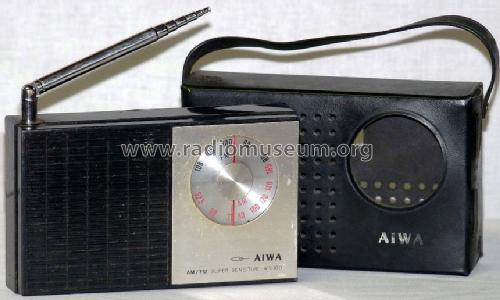

Picture courtesy of guest Dmitry Skylark

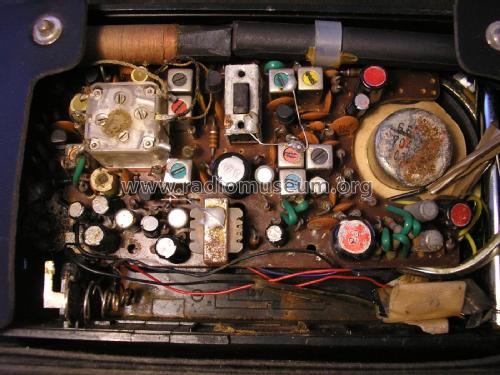

Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Picture courtesy of guest Dmitry Skylark
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
- Power out
- 0.5 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AR-160 - Aiwa Co. Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 93 x 36 mm / 6.1 x 3.7 x 1.4 inch
- Notes
-
Lederschutztasche, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, schwenkbare Teleskopantenne
Made in Japan 101
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
