For model AR-733 2x SW, Aiwa Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Aiwa Co. Ltd.; Tokyo
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SC380 2SA101 2SA101 2SB33 2SB33 2SB56 2SB56
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AR-733 [2x SW] - Aiwa Co. Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 256 x 190 x 78 mm / 10.1 x 7.5 x 3.1 inch
Notes Aiwa AR-733 with two short wave ranges.
Coverage:

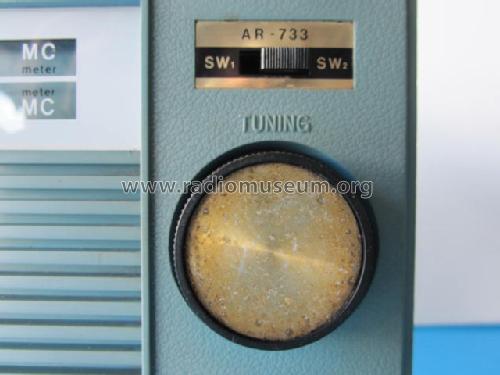

SW1 2.3...7.5 MHz
SW2 7.5...22 MHz.
Has telescopic and ferrite rod antennas.
Earphone socket.
See also Aiwa AR-733 with AM/SW ranges.
Net weight (2.2 lb = 1 kg) 1.150 kg / 2 lb 8.5 oz (2.533 lb)

Model page created by Abu Bakar. See "Data change" for further contributors.
