• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1970 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246917

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SC668 2SC668 2SC668 2SC380 2SC380 2SC380 2SA52 2SA466 2SA466 2SB54 2SB54 2SB56 2SB56 1S352 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage

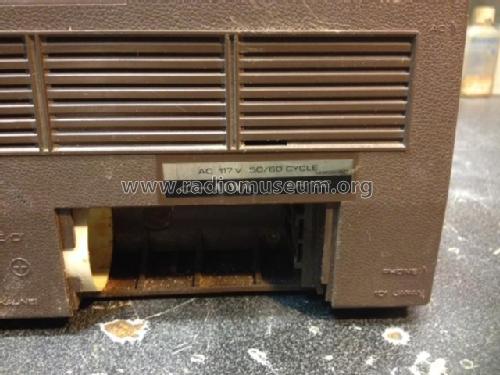

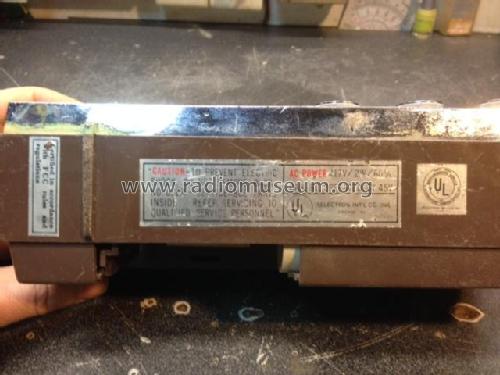

• Line / Batteries (any type) / 115; 230 / C: 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch

• Power out
• 0.6 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State Super AR-162 C - Aiwa Co. Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 117 x 75 mm / 9.6 x 4.6 x 3 inch

• Notes

• Coverage:
  AM 525 ... 1650 kHz
  FM 88 ... 108 MHz
  VHF (Police) 147 ... 160 MHz

  See also Aiwa AR-162 LV with LW, MW and UKW (German lettering).

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Price in first year of sale
• 2,000.00 PTE

• Mentioned in
• -- Schematic

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
