TPR-210EE
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183588
Service Manual

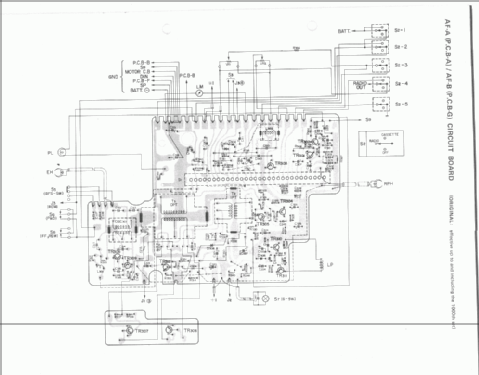

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- 2SC784 2SC784 2SC380 2SC380 2SC380 2SC380 2SC380 2SC369 2SC732 2SC372 2SC372 2SC372 2SC372 2SC372 2SB56 2SB56 2SB56 2SB461 2SB461
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 115/220; 5 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TPR-210EE - Aiwa Co. Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 250 x 90 mm / 11.8 x 9.8 x 3.5 inch
- Notes
- Frequency range: LW: 150-300 kHz, MW: 525-1600 kHz, SW: 6-16 MHz y FM: 88 - 104 MHZ )
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
