1710; Akai Electric Co., (ID = 596700) R-Player
Akai Electric Co.,: 1710 [R-Player] ID = 596700 795x696
Select picture or schematic to display from thumbnails on the right and click for download.

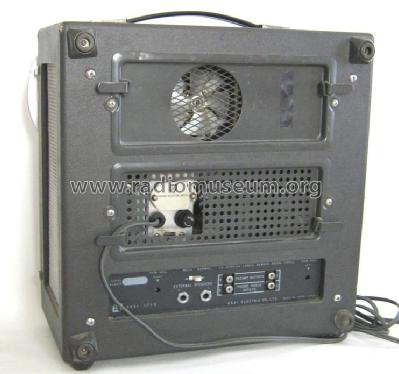

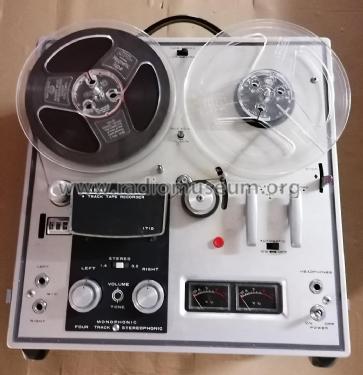

For model 1710, Akai Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1968 ?? Category: Sound/Video Recorder and/or Player

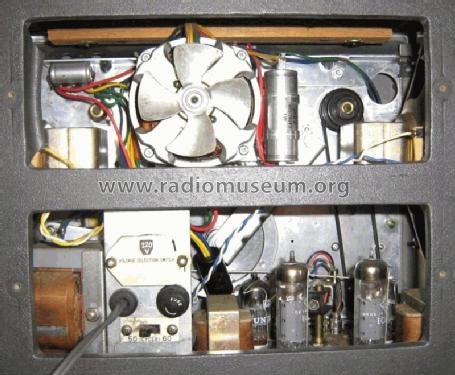

Valves / Tubes 4: 12AT7 12AT7 6BM8 6BM8
Main principle Audio-Amplification; none
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker 2 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 1710 - Akai Electric Co., Ltd.; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 343 x 343 x 229 mm / 13.5 x 13.5 x 9 inch
Notes Vierspur-Stereo. Three Speed; 19 cm, 9.5 cm, 4.75 cm (per Second), (38 cm per second with an optional accessory capstan and pinch wheel.). Spulendurchmesser: 18 cm. Frequenz: 40-18000Hz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Source of data -- Original-techn. papers.

Model page created by Jos Lauth. See "Data change" for further contributors.



All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
Here you find 559 models, 498 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
