• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1984 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237906

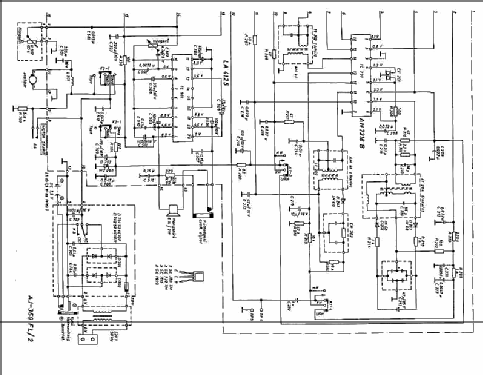

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 5 ×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

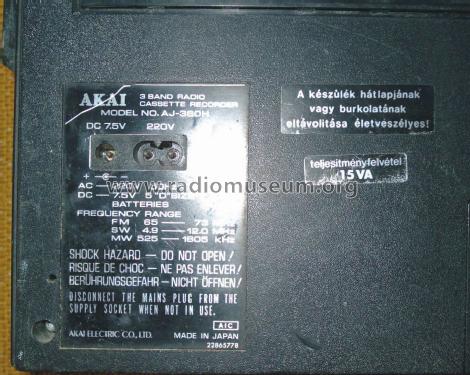

• Model: 3 Band Radio Cassette Recorder AJ-360H - Akai Electric Co., Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 380 x 250 x 100 mm / 15 x 9.8 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 2.950 kg / 6 lb 8 oz (6.498 lb)

• Mentioned in
• Csabai Dániel: Rádió-magnók szervízkönybve I.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
