Stereo Tape Deck 4000D

Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1082797) R-Player
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 398750) R-Player Stereo Tape Deck 4000D; Akai Electric Co., (ID = 398751) R-Player
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1081760) R-Player Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680620) R-Player
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680621) R-Player Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680623) R-Player
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680624) R-Player Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680625) R-Player
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 1680626) R-Player
Use red slider bar for more.
Stereo Tape Deck 4000D; Akai Electric Co., (ID = 398750) R-Player
Akai Electric Co.,: Stereo Tape Deck 4000D [R-Player] ID = 398750 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Tape Deck 4000D, Akai Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1968 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Tape Deck 4000D - Akai Electric Co., Ltd.; Tokyo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 405 x 315 x 180 mm / 15.9 x 12.4 x 7.1 inch
Notes Stereo tape deck at 4-track without power amplify. Speed 9,5 and 19 cm/s. Three-head.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Source of data - - Data from my own collection
Documents regarding this model

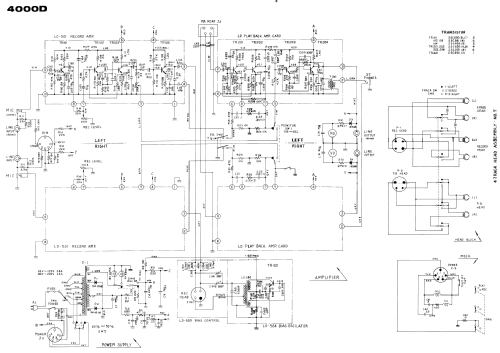

  Operator's manual 23 pages plus schematic 3145 KB

Model page created by Eero Ukkola. See "Data change" for further contributors.
