4 Band Radio Cassette Recorder AJ-490FS

4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360725) Radio 4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360726) Radio
4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360727) Radio 4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360728) Radio
4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360729) Radio
Use red slider bar for more.

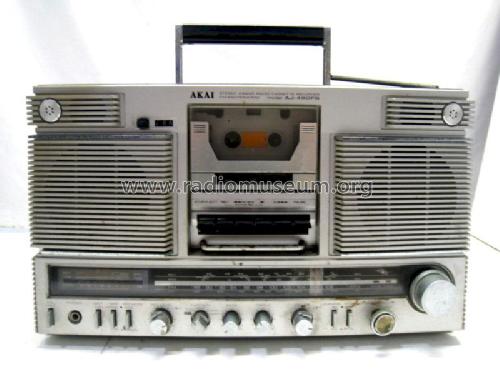

4 Band Radio Cassette Recorder AJ-490FS; Akai Electric Co., (ID = 1360725) Radio
Akai Electric Co.,: 4 Band Radio Cassette Recorder AJ-490FS [Radio] ID = 1360725 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Radio Cassette Recorder AJ-490FS, Akai Electric Co., Ltd.; Tokyo:
Ebay auction by user itemz12 190749689863

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-120; 220-240 / 9; 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: 4 Band Radio Cassette Recorder AJ-490FS - Akai Electric Co., Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 440 x 260 x 100 mm / 17.3 x 10.2 x 3.9 inch
Notes

SW1: 3.9 - 12 MHz,

SW2: 12 - 26 MHz.

20 W power consumption. Made in Japan.

Model page created by a member from A. See "Data change" for further contributors.
