Stereo Receiver AA-V205
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1986
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142622
Original prospekt in 1986.

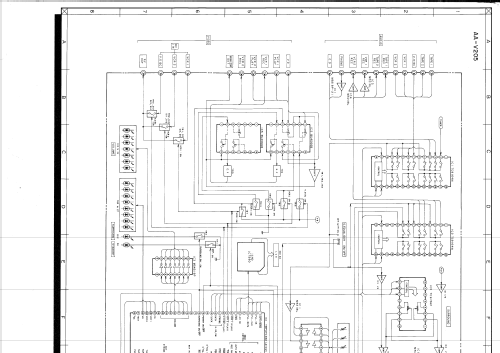

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 120 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Receiver AA-V205 - Akai Electric Co., Ltd.; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 100 x 277 mm / 17.3 x 3.9 x 10.9 inch
- Notes
- HiFi-Receiver mit 2x60 Watt Sinus an 8 Ohm. Surround-System, IR-Fernbedienung, 5-Band Equalizer.
Quartz-Synthesizer-AM/FM-Tuner, 16 Stationsspeicher.
Video/TV-Anschlüsse, 2 LS-Paare separat schaltbar.
Gehäuse in Schwarz oder Silber.
- Net weight (2.2 lb = 1 kg)
- 8.6 kg / 18 lb 15.1 oz (18.943 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
