AM-A90

AM-A90; Akai Electric Co., (ID = 552446) Ampl/Mixer
Use red slider bar for more.
AM-A90; Akai Electric Co., (ID = 552446) Ampl/Mixer
Akai Electric Co.,: AM-A90 [Ampl/Mixer] ID = 552446 933x262

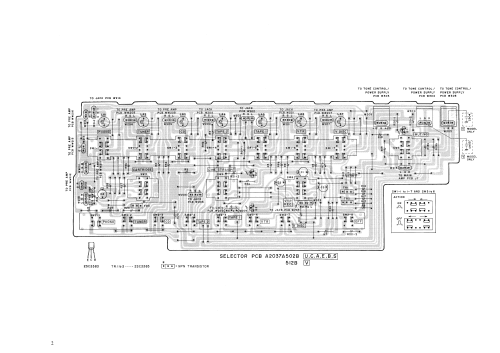

Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-A90, Akai Electric Co., Ltd.; Tokyo:
Original prospekt in 1986.

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1986 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 360 W (unknown quality)
from Radiomuseum.org Model: AM-A90 - Akai Electric Co., Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 120 x 410 mm / 17.3 x 4.7 x 16.1 inch
Notes Open-Loop-Verstärker mit 2x180Watt Sinus an 4 Ohm.
Record+Input-Selector, Line-Straight-Schaltung, Loudness, 2 LS-Paare separat schaltbar. MC-Eingang, AV-kompatibel, 2 Tape Anschlüsse, CD/AUX-Eingang, Kopfhöreranschluss.
Gehäuse in Schwarz oder Silber.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
