• Year
  • 1982
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 145942

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

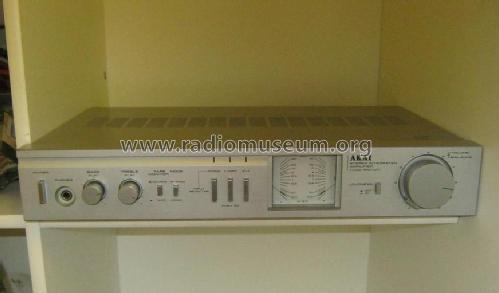

  • Model: AM-U11 - Akai Electric Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 75 x 322 mm / 17.3 x 3 x 12.7 inch
  • Notes
  • Stereo-Vollverstärker mit 2 x 30 Watt Sinus an 4 Ohm. Leistungsbandbreite 8 - 50.000 Hz.
    Zeiger Leistungsanzeige.
  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
