• Year
  • 1986
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 141846

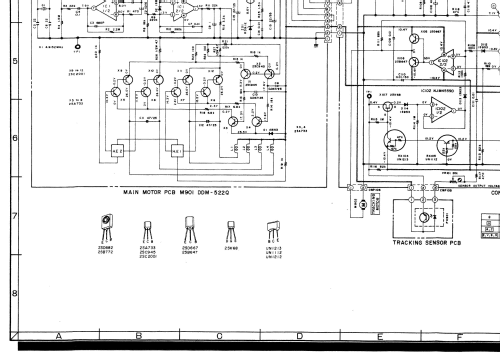

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: AP-A50 - Akai Electric Co., Ltd.; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 440 x 106 x 395 mm / 17.3 x 4.2 x 15.6 inch
  • Notes
  • Vollautomatischer Tangential-Plattenspieler mit quarzgesteuertem Direktantrieb und 2 Geschwindigkeiten (33 und 45 Upm), DC-Motor, Mikrocomputer-Steuerung. T4P-Stecksystem VM-Typ PC-33 und Frontbedienung. Plattenteller: Al-Legierung Spritzguss, Tonarmlift ölgedämpft. Farbausführung: Silber oder Schwarz.
  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
