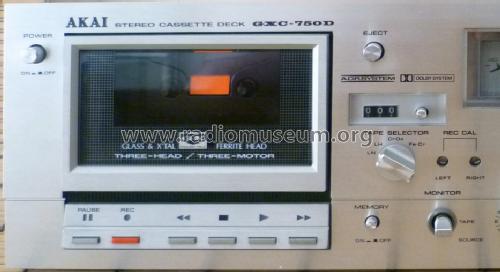

Cassette deck stereo GXC-750D

Akai Electric Co., Ltd.; Tokyo

  • Year
  • 1978
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 146645

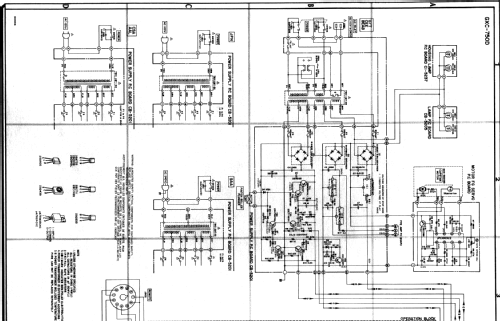

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Cassette deck stereo GXC-750D - Akai Electric Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 17.3 x 12.5 x 6.2 inch / 439 x 318 x 157 mm
  • Notes
  • 3-Kopf-Stereo-Cassetten-Deck mit Dolby B, MPX Filter, 2 VU-Meter, Bandsortenschalter und ADR System (Automatic Distortion Reduction System).
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 720.00 $
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • Funkschau (13/1979, S. 757 - 759 Das A.D.R.-System)
  • Author
  • Model page created by Bernardo Diaz. See "Data change" for further contributors.
