Cassette Stereo Tape Deck GXC-570 D All Versions

Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 535687) R-Player Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 535688) R-Player
Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 896944) R-Player Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 896947) R-Player
Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 896948) R-Player Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 896957) R-Player
Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 1728244) R-Player
Use red slider bar for more.
Cassette Stereo Tape Deck GXC-570 D; Akai Electric Co., (ID = 535687) R-Player
Akai Electric Co.,: Cassette Stereo Tape Deck GXC-570 D [R-Player] ID = 535687 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Stereo Tape Deck GXC-570 D All Versions, Akai Electric Co., Ltd.; Tokyo:
Manufacturers Literature

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1976–1979 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 122:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cassette Stereo Tape Deck GXC-570 D [All Versions] - Akai Electric Co., Ltd.; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 255 x 225 mm / 17.3 x 10 x 8.9 inch
Notes Akai GXC-570 D, Cassette Stereo Tape Deck, GX Focused Field;
High-End unit, Dolby, 3-heads, 3-motors, glass & X'tal ferrite head, double capstan drive, memory tape counter, bias up to CrO², MPX filter, motor driven control board lid, response up to 19.000 Hz Fe-Cr tapes, A.D.R System, 2 VU meters, manual pitch and FF/RWD speed control, RCA terminals, headphone & 2 x mic. jacks, 110 transistors, 159 diodes, 12 FET's, 9 IC, terminal for RC-17 or RC-18 cable remote control,
CSA-, UL and LA models for 120 V 60 Hz only, CEE models for 220 V 50 Hz only, other models 100 - 240 V 50/60 Hz switchable, 62 W power consumption, wooden cabinet covered with durable wood-grain vinyl material.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Collectors' prices

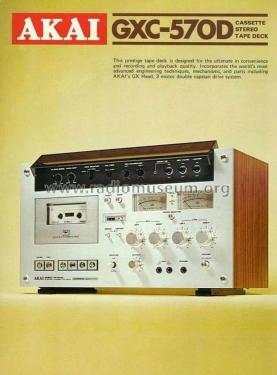

Mentioned in - - Manufacturers Literature (2/78 Akai Katalog (D))
