CT F211

CT F211; Akai Electric Co., (ID = 468412) Television CT F211; Akai Electric Co., (ID = 468414) Television
CT F211; Akai Electric Co., (ID = 468413) Television CT F211; Akai Electric Co., (ID = 468415) Television
Use red slider bar for more.

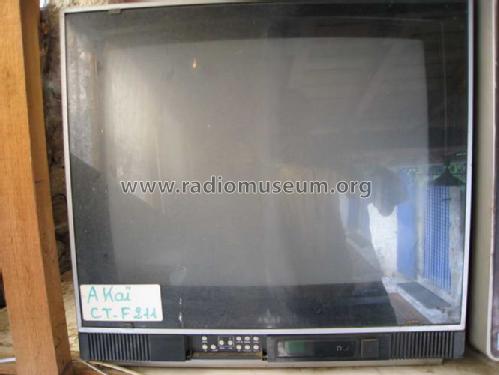

CT F211; Akai Electric Co., (ID = 468412) Television
Akai Electric Co.,: CT F211 [Television] ID = 468412 666x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model CT F211, Akai Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1985 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A51JAR00X
Semiconductors (the count is only for transistors) 7:
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: CT F211 - Akai Electric Co., Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 500 x 520 x 500 mm / 19.7 x 20.5 x 19.7 inch
Notes CT F211 Akai est un téléviseur couleur 50 cm avec coin carré. Il comprend 9 IC TDA4600 TBA130 TDA2460 TDA3505 TDA4555 TDA1905 TDA2595 HCF4011. Wave band UHF.

Model page created by Jacky Parmentier. See "Data change" for further contributors.
