Custom Deck Solid State GX-221

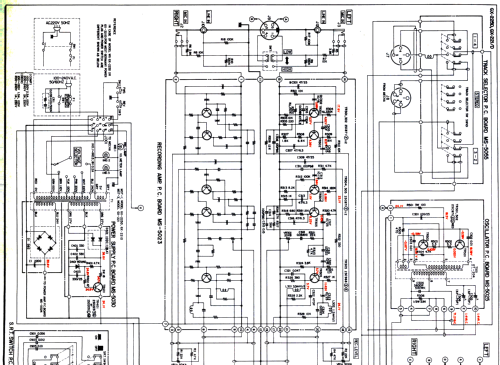

Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1626036) R-Player

Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1626038) R-Player

Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1626039) R-Player

Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1626040) R-Player
Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1625893) R-Player
Use red slider bar for more.
Custom Deck Solid State GX-221; Akai Electric Co., (ID = 1625893) R-Player
Akai Electric Co.,: Custom Deck Solid State GX-221 [R-Player] ID = 1625893 652x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Custom Deck Solid State GX-221, Akai Electric Co., Ltd.; Tokyo:
Aus den Hersteller-Unterlagen

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1973 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder; Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 110; 200; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Custom Deck Solid State GX-221 - Akai Electric Co., Ltd.; Tokyo
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 425 x 239 mm / 16.9 x 16.7 x 9.4 inch
Notes

Ausführliche Serviceunterlagen bei GX-225D

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
