For model GX-285D, Akai Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1973 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 75:
Main principle Audio-Amplification
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: GX-285D - Akai Electric Co., Ltd.; Tokyo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 460 x 260 mm / 17.1 x 18.1 x 10.2 inch
Notes 4-Spur, 9,5 und 19 cm/s, 3 Motoren, 4 Tonköpfe, Spulen-Ø bis 18 cm, Autoreverse Maschine mit symetrischem Bandantrieb.
Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)
Source of data - - Data from my own collection

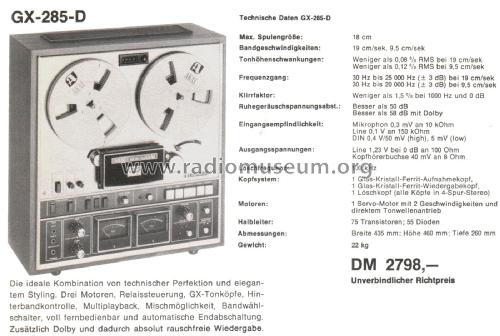

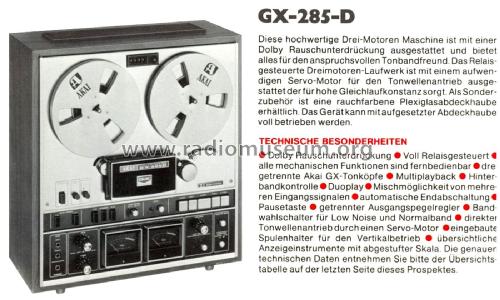

Mentioned in -- Original prospect or advert
Documents regarding this model
  Brochure Akai GX-285D 658 KB
  Owner's Manual Akai GX-285D 1555 KB

Model page created by Peter Böhm. See "Data change" for further contributors.
