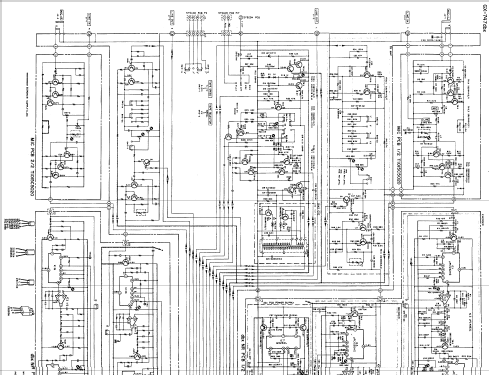

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Tape Deck GX-747DBX, Akai Electric Co., Ltd.; Tokyo:
The GX-747dbx tape recorder

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1983/1984 Category: Sound/Video Recorder and/or Player
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Tape Deck GX-747DBX - Akai Electric Co., Ltd.; Tokyo
Material Metal case
Dimensions (WHD) 440 x 483 x 256 mm / 17.3 x 19 x 10.1 inch
Notes 6 heads, 3 motors, up to 10" reel. Line output: 0.775 V at 0 dB VU (meters).
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Mentioned in -- Original-techn. papers.

Model page created by Lars-G. Lundelin. See "Data change" for further contributors.



All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
Here you find 559 models, 500 with images and 163 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Akai Electric Co.,: Stereo Tape Deck GX-747DBX
Threads: 1 | Posts: 4
Hits: 2105     Replies: 3
akai: GX-747DBX; Stereo Tape Deck
Lars-G. Lundelin
07.Mar.15
  1

My AKAI GX 747 dbx is working well. I have a question though about the VU meters, wether these should be illuminated or not. In my set, there's no illumination, but have seen identical sets with VU-meters illuminated. I can't see any bulbs or Leds installed.
Anyone with knowledge about this mystery?
kind regards

Lars-G.

Rik Line
07.Mar.15
  2

Lars,

I just looked at the service manual and it seem that it is built into the VU meter. (Pgs 44 and 77).

Cheers,

Rik

w2rik



Attachments

Lars-G. Lundelin
07.Mar.15
  3

Hi Rik!
Thanks a lot for your reply.
Looks not very good if I have to replace both VU meters just only for illumination purpose.
Each time the bulb blows up, you have to replace the whole meter unit.
Oh Good Grief!! .....That's not a good renommee for AKAI.


Kind Regards


Lars-G.

Georg Richter
08.Mar.15
  4

Lars-G.,

according to the service manual, the bulbs of both meters arr connected in series.

As to be read in other forums, the bulbs are not running on nominal voltage, so "each time a bulb blows" happens probably not much often, and not for both at same time. If a bulb blows, the tape recorder was obviously long time in use.

One has offered LED replacements for model 747 VU meters, another one is selling bulbs (of higher voltage) for model 636 Vu meters. As VU meters are assembled, check whether it can be disassembled - before ranting against AKAI.

It is a service matter, not intended to be solved by end users.

Best Regards,

GR
