For model GXC-760D, Akai Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 90:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: GXC-760D - Akai Electric Co., Ltd.; Tokyo
Material Special material, described in the notes.
Shape Book-shelf unit.
Dimensions (WHD) 440 x 142 x 306 mm / 17.3 x 5.6 x 12 inch

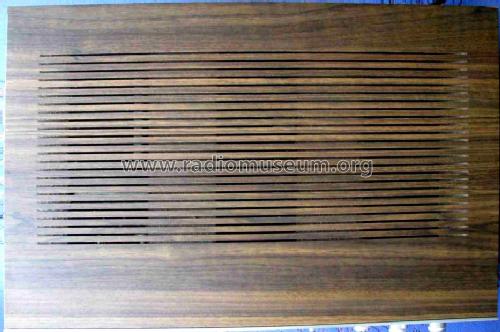

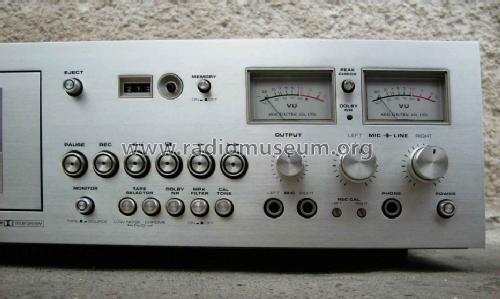

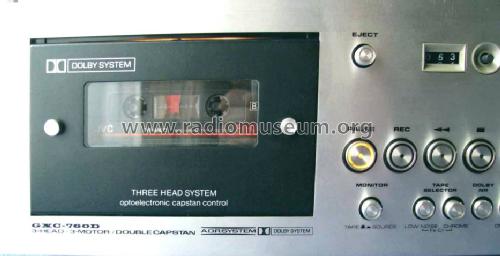

Notes 4 track 2 channel stereo system. Philips type cassette. Tape speed 1-7/8 ips. Wow less than 0,06% WRMS. Flutter less than 0,17% (DIN 45500). Frecuency response 30 Hz to 19.000 Hz (+- 3dB) using Fe-Cr tape. Distorstion lees than 1% (1.000 Hz "0" VU). Signal to noise ratio better than 51 dB; Dolby system improves 10 dB obove 5.000 Hz. Erase ratio better than 70 dB. Bias frequency 100 kHz. 3 head system (GX recording, GX playback and erase). 3 motors: one AC servo outer-motor for capstan drive and two DC motors for reel drive. Fast forward and rewind 70 seconds using C-60 cassette. 2 output jacks 0,775 V ("0" VU), with load impedance more than 20 k ohms. Input microphone 0,3 mV impedance 600 ohms. 82 transistors, 125 diodes, 8 FETs and 8 ICs. Aluminium front panel and wooden box.
Net weight (2.2 lb = 1 kg) 11.1 kg / 24 lb 7.2 oz (24.449 lb)
Collectors' prices
Source of data - - Manufacturers Literature
Mentioned in -- Original prospect or advert

Model page created by Rafael Chueca. See "Data change" for further contributors.
