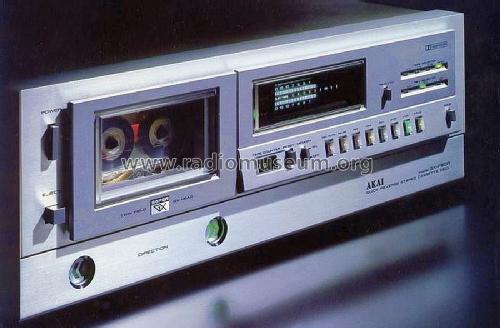

Quick Reverse Cassette Deck GX-F60R

Akai Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1981 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 143534

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Quick Reverse Cassette Deck GX-F60R - Akai Electric Co., Ltd.; Tokyo
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 150 x 290 mm / 17.3 x 5.9 x 11.4 inch
  • Notes
  • Akai GX-F60R Quick Reverse Stereo Cassette Deck;
    Dolby NR, 2 motors, tape counter, fluorescent tube VU meters, quick reverse 0.7 sec, CrO² & metal bias, response up to 19 KHz, DIN or RCA terminals selectable, headphone & 2 x mic terminals, cable remote control RC-21 as an option, 35 W power consumption.
  • Net weight (2.2 lb = 1 kg)
  • 10.7 kg / 23 lb 9.1 oz (23.568 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
