For model Stereo Cassette Deck CS-M01A, Akai Electric Co., Ltd.; Tokyo:
Ebay Auction Item No 230758694817

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1980/1981 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 60 Hz, 120 or 50 Hz, 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck CS-M01A - Akai Electric Co., Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 143 x 250 mm / 17.3 x 5.6 x 9.8 inch
Notes

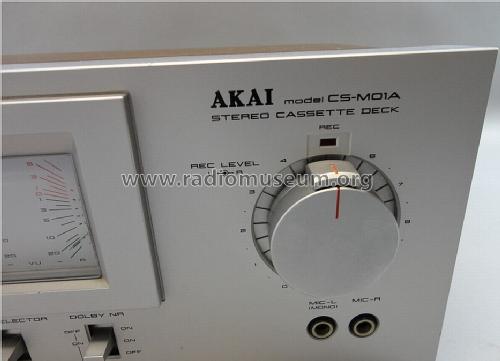

Frontloading 2 Head Stereo Cassette Deck with Dolby B, MPX Filter and Metal Tape Capability.

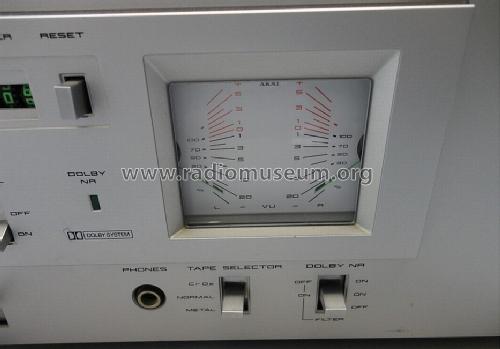

3-Digit mechanical Counter, Analog VU Meters, Record Indicator.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically speed controlled DC
Tape Type: type I, CrO2, Metal
Noise Reduction: Dolby B
Frequency Response: 30Hz to 18kHz  (Metal tape)
Signal to Noise Ratio: 69dB  (dolby B)
Wow and Flutter: 0.05% (WMRS)
Total Harmonic Distortion: 0.7%
Input: 70mV (line), 0.25mV (mic)
Output: 0.41V (line)

Versions for 60 Hz, 120 V (USA) and 50 Hz, 220 V known.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 180.00 $
