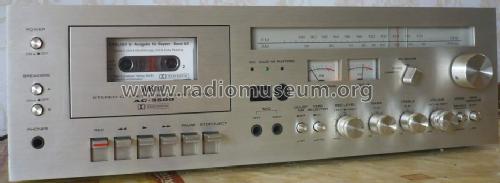

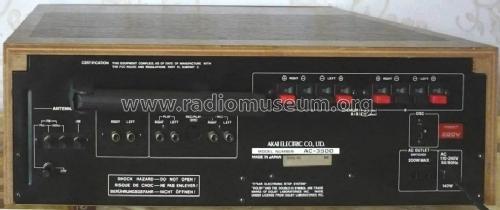

Stereo Cassette / Receiver System AC-3500 L

• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 218911

• Picture
• Schematics

Previous Next

Previous Next

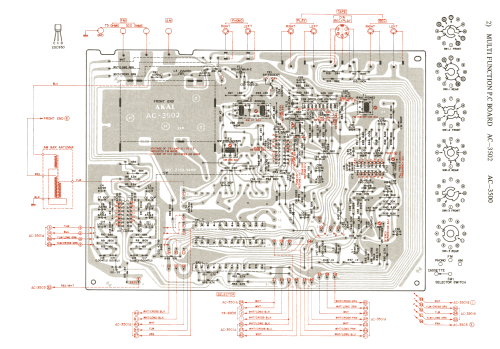

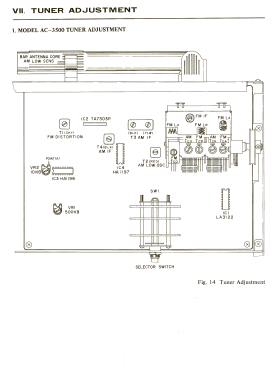

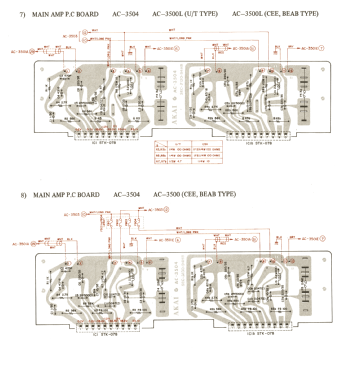

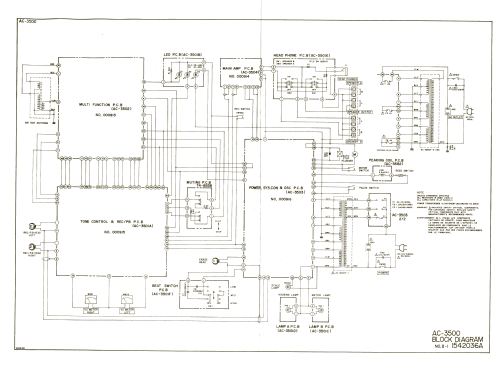

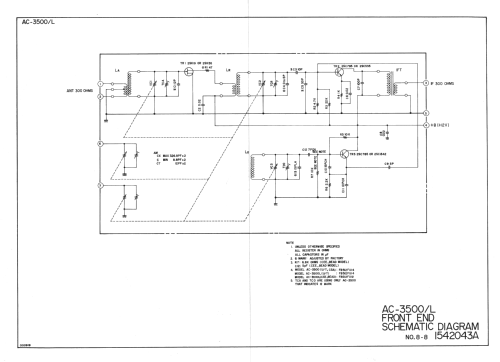

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette / Receiver System AC-3500 L - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 157 x 400 mm / 19.7 x 6.2 x 15.7 inch

• Notes
• Akai Stereo Cassette/ Receiver System AC-3500L,
  2 x 30 Watt Sinusleistung,
  2 x 40 Watt Musikleistung.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• -- Original prospect or advert

• Other Models

• Here you find 613 models, 567 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
