Stereo Receiver AA-1030

• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132892

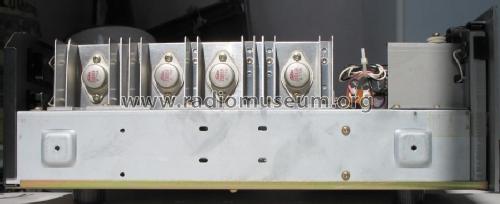

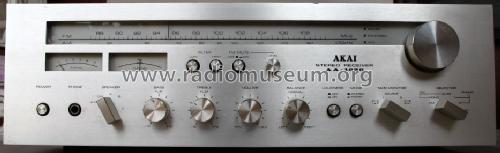

• Picture

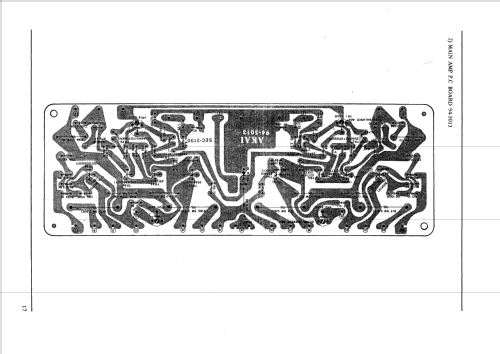

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 33

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver AA-1030 - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 140 x 350 mm / 17.3 x 5.5 x 13.8 inch

• Notes
• AM/FM-Stereo-Receiver mit 2 x 30 Watt Sinus an 4 Ohm. 33 Transistoren, 15 Dioden, 3 IC's und 1 FET.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in

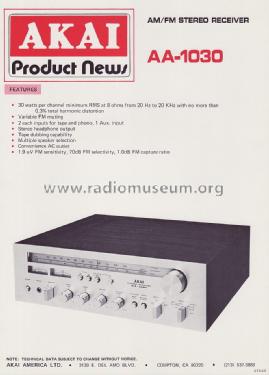

• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
