Stereo Tape Recorder M-11
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1972
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 250247

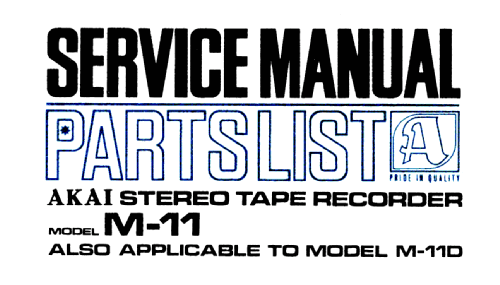

Aus den Hersteller-Unterlagen
Aus den Hersteller-Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Tape Recorder M-11 - Akai Electric Co., Ltd.; Tokyo
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 419 x 405 x 228 mm / 16.5 x 15.9 x 9 inch
- Notes
-
Siehe auch M-11D (ohne Leistungsverstärker, ohne Lautsprecher).
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
