For model Turn Table AP-103C, Akai Electric Co., Ltd.; Tokyo:

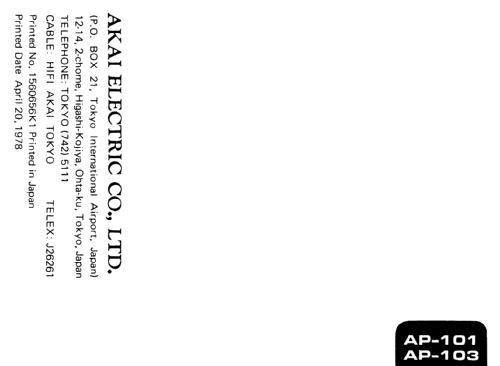

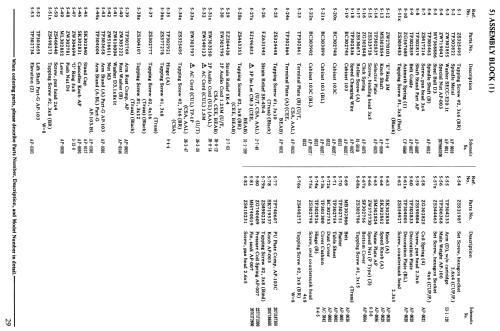

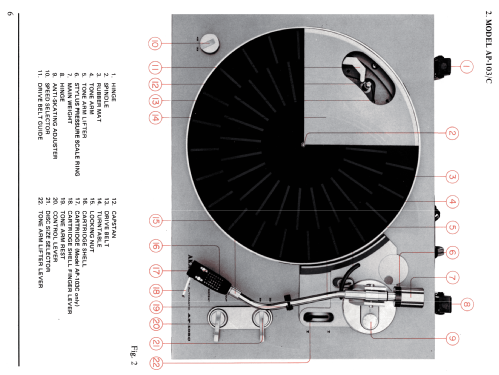

Aus dem Servicemanual

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1978 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Turn Table AP-103C - Akai Electric Co., Ltd.; Tokyo
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 440 x 140 x 355 mm / 17.3 x 5.5 x 14 inch
Notes

Akai semi-automatic belt drive turntable model AP-103C with Akai Cartridge, Dustcover, Pitch Control, 2 Speed (33 and 45 rpm).
Akai AP-103 (without cartridge).

Net weight (2.2 lb = 1 kg) 6.9 kg / 15 lb 3.2 oz (15.198 lb)
Literature/Schematics (1) -- Original-techn. papers.
