UC-W5

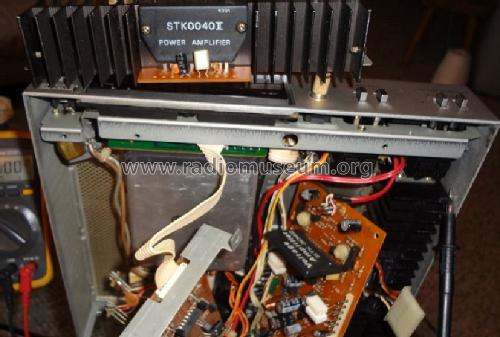

UC-W5; Akai Electric Co., (ID = 562417) Ampl/Mixer UC-W5; Akai Electric Co., (ID = 1548401) Ampl/Mixer
UC-W5; Akai Electric Co., (ID = 1548402) Ampl/Mixer
Use red slider bar for more.
UC-W5; Akai Electric Co., (ID = 562417) Ampl/Mixer
Akai Electric Co.,: UC-W5 [Ampl/Mixer] ID = 562417 613x184
Select picture or schematic to display from thumbnails on the right and click for download.
For model UC-W5, Akai Electric Co., Ltd.; Tokyo:
Original prospekt in 1980.

Country:  Japan
Manufacturer / Brand:  Akai Electric Co., Ltd.; Tokyo
Year: 1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 22: LC7556 TA7131 STK3042 TA75458 STK0040 STK0040
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 35 W (undistorted)
from Radiomuseum.org Model: UC-W5 - Akai Electric Co., Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 280 x 56 x 284 mm / 11 x 2.2 x 11.2 inch
Notes

Mini Endstufe mit 2 x 56 Watt Sinus an 4 Ohm. FLD Anzeige.

There are several variants:

U/T - Universal, 110/220/240v 50/60Hz U/T variant fitted with STK0050II Darlington Power Pack current amplifiers.  All other types fitted with STK0040II

JPN - Japan, 100v 50/60Hz

CSA/AAL - 120v 60Hz

CEE/UK/SAA - 220/240v 50Hz

2x 35w RMS at 0.01THD direct coupled output stages.

The power supply is an early switched mode system running at 20KHz giving +/- 38v DC

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
