• Country
• Austria

• Manufacturer / Brand
• AKG Acoustics GmbH; Wien

• Year
• 1993

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71815

• • alternative name: AKG Akustische- ...München - siehe Austria
  • Brand: Akustische- und Kino-Geräte GmbH

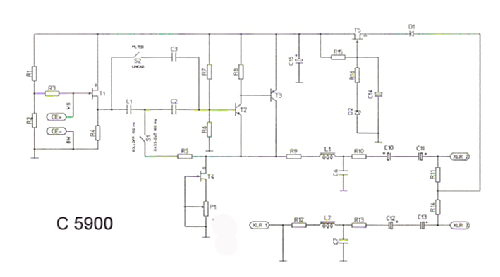

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Powered by external power supply or a main unit.

• Material
• Metal case

• from Radiomuseum.org
• Model: C5900 - AKG Acoustics GmbH; Wien

• Dimensions (WHD)
• 53 x 188 x 53 mm / 2.1 x 7.4 x 2.1 inch

• Notes
• Kondensator Mikrofon. Richtcharakteristik Hyperniere. Übertragungsbereich 20 bis 20.000Hz. Empfindlichkeit 6mV/Pa. Impedanz 200 Ohm. Phantomspeisung 9 bis 52V erforderlich.

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
