• Country
• Austria

• Manufacturer / Brand
• AKG Acoustics GmbH; Wien

• Year
• 1978 ?

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 82441

• • alternative name: AKG Akustische- ...München - siehe Austria
  • Brand: Akustische- und Kino-Geräte GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Power type and voltage
• Other, details in remarks or not known. / 7,5 - 52 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Kondensator-Mikrofon CK1-C451CB [Modulaufbau] - AKG Acoustics GmbH; Wien

• Dimensions (WHD)
• 18 x 155 x 0 mm / 0.7 x 6.1 x 0 inch

• Notes
• Kombi-Studiomikrofon des AKG-"CMS-Modulsystems", bestehend aus CK1-Nierenkapsel auf Schaft/Mikrofon-FET-Vorverstärker C451CB geschraubt (integr. Kleintuchel T3262-Stecker, 2-stufiger Bassabschwächer schaltbar), Frequenzbereich 20-20000 Hz, Empfindlichkeit 0,45 mV/µBar = 4,5 mV/Pascal, Dynamik -67 dBV, Impedanz 200 Ohm symm.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Price in first year of sale
• 700.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

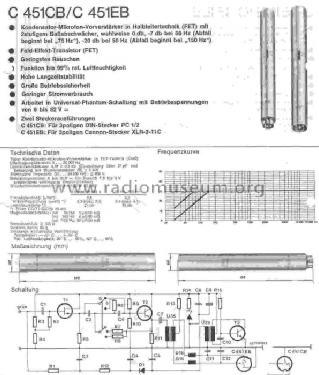

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Sieghart Brodka † 24.2.17. See "Data change" for further contributors.
