Autotransistor 716 AT-716/6900

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 105340) Radio

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 105341) Radio

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 105342) Radio

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 105343) Radio

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 105344) Radio

Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 123206) Radio
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 1011382) Radio Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 223325) Radio
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 116204) Radio Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 223324) Radio
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 223323) Radio Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 574454) Radio
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 574455) Radio Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 1011383) Radio
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 1011392) Radio Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 1300146) Radio
Use red slider bar for more.
Autotransistor 716 AT-716/6900; Akkord-Radio + (ID = 1011382) Radio

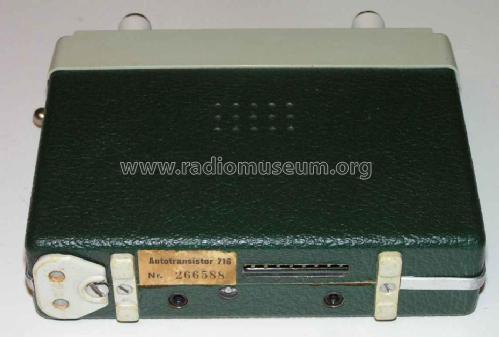

Akkord-Radio +: Autotransistor 716 AT-716/6900 [Radio] ID = 1011382 933x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autotransistor 716 AT-716/6900, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1967–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Autotransistor 716 AT-716/6900 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 168 x 146 x 44 mm / 6.6 x 5.7 x 1.7 inch
Notes Transistoren: 2× AF106, 3× AF138, 2× AF137, 2× AC122, 2× AC117.
Automatische Umschaltung von Koffer auf Autobetrieb nach Einschub in Autohalterung; 6/12 V bei Autobetrieb, Polarität umschaltbar, Ausgangsleistung bei Autobetrieb = 2,5 W.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 169.00 DM
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
