Bambi ML55

Bambi ML55; Akkord-Radio + (ID = 811224) Radio

Bambi ML55; Akkord-Radio + (ID = 11823) Radio

Bambi ML55; Akkord-Radio + (ID = 102401) Radio
Bambi ML55; Akkord-Radio + (ID = 69) Radio
Use red slider bar for more.
Bambi ML55; Akkord-Radio + (ID = 69) Radio

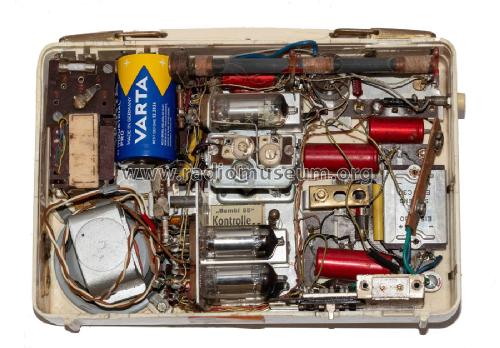

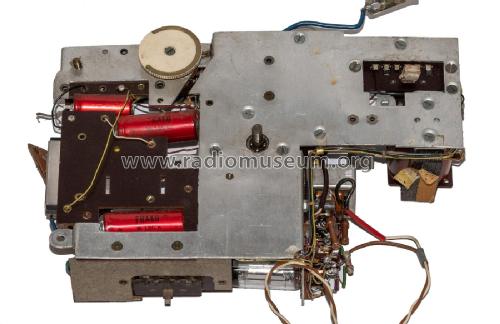

Akkord-Radio +: Bambi ML55 [Radio] ID = 69 609x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bambi ML55, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 110, 125, 150, 220, 250/1.5/75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bambi ML55 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Literature/Schematics (1) -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 177 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Akkord-Radio +: Bambi ML55
Threads: 1 | Posts: 1
Hits: 1555     Replies: 0
akkord: ML; Bambi
Arpad Roth † 27.3.17
27.Mar.04
  1 Die, am Schaltplan angeführte, Heizspannung ist mit 15 Volt zu hoch. 1,5 Volt ist richtig !!
