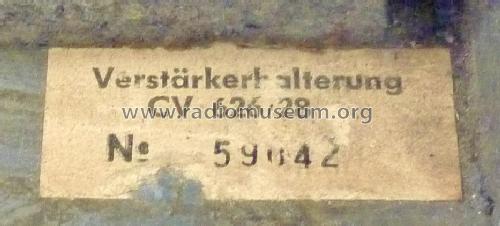

Einschubhalterung mit Verstärker CV626/27 & 628

Akkord-Radio + Akkord Elektronik (Radios)

  • Year
  • 1963 ?
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 190000

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Einschubhalterung mit Verstärker CV626/27 & 628 - Akkord-Radio + Akkord
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 180 x 75 x 205 mm / 7.1 x 3 x 8.1 inch
  • Notes

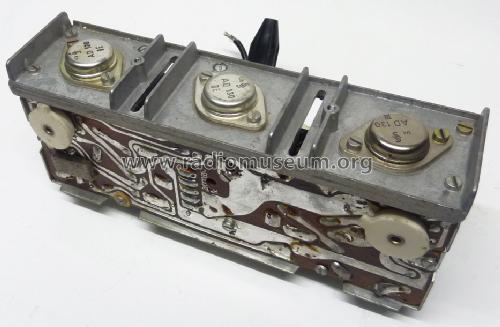

  • Einschubhalterung mit angeschraubter Endstufe die mechanisch verstellt werden kann.
    Vorgesehen für das Modell Akkord Autotransistor Automatic.
  • Net weight (2.2 lb = 1 kg)
  • 2.150 kg / 4 lb 11.8 oz (4.736 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
