Filou 611/4300

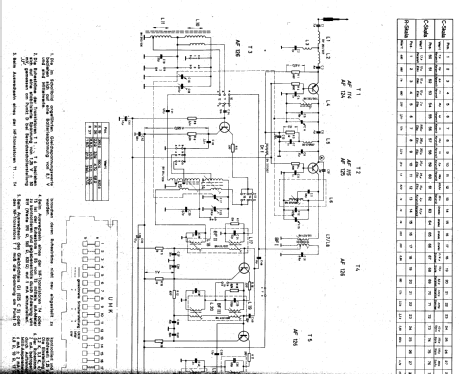

Filou 611/4300; Akkord-Radio + (ID = 815412) Radio

Filou 611/4300; Akkord-Radio + (ID = 815413) Radio

Filou 611/4300; Akkord-Radio + (ID = 815411) Radio

Filou 611/4300; Akkord-Radio + (ID = 815414) Radio

Filou 611/4300; Akkord-Radio + (ID = 815999) Radio

Filou 611/4300; Akkord-Radio + (ID = 816004) Radio
Filou 611/4300; Akkord-Radio + (ID = 1579483) Radio Filou 611/4300; Akkord-Radio + (ID = 1579484) Radio
Filou 611/4300; Akkord-Radio + (ID = 1579485) Radio Filou 611/4300; Akkord-Radio + (ID = 1579487) Radio
Filou 611/4300; Akkord-Radio + (ID = 1438735) Radio Filou 611/4300; Akkord-Radio + (ID = 2044935) Radio
Use red slider bar for more.
Filou 611/4300; Akkord-Radio + (ID = 1579483) Radio
Akkord-Radio +: Filou 611/4300 [Radio] ID = 1579483 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Filou 611/4300, Akkord-Radio + Akkord Elektronik (Radios):
Mit freundlicher Erlaubnis von Ebay Mitglied rft-sternchen-olaf

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 OC305 OC304 AC120 AC120
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Filou 611/4300 - Akkord-Radio + Akkord
Shape Portable set > 8 inch (also usable without mains)
Notes Koffergerät mit Anschluß für externes Netzgerät 9VDC.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Rudolf Müller. See "Data change" for further contributors.
