Filou 700

Filou 700; Akkord-Radio + (ID = 615755) Radio Filou 700; Akkord-Radio + (ID = 615757) Radio
Filou 700; Akkord-Radio + (ID = 615758) Radio Filou 700; Akkord-Radio + (ID = 615759) Radio
Filou 700; Akkord-Radio + (ID = 2275186) Radio Filou 700; Akkord-Radio + (ID = 2275187) Radio
Filou 700; Akkord-Radio + (ID = 2275188) Radio
Use red slider bar for more.
Filou 700; Akkord-Radio + (ID = 615755) Radio

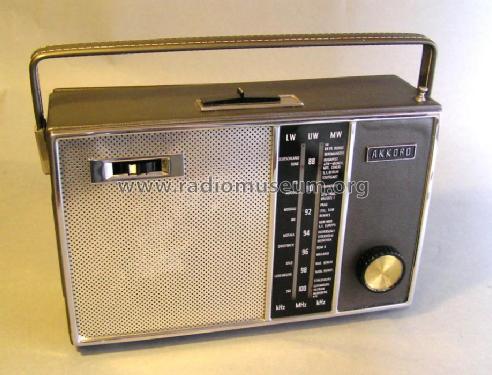

Akkord-Radio +: Filou 700 [Radio] ID = 615755 919x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Filou 700, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Filou 700 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 254 x 165 x 82 mm / 10 x 6.5 x 3.2 inch
Notes Das Gerät besitzt im Gegensatz zum Filou 705 eine deutsch beschriftete Skala und ist auch im linken vorderen Teil mit Kunstleder bezogen.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Gerhard Weiss. See "Data change" for further contributors.
