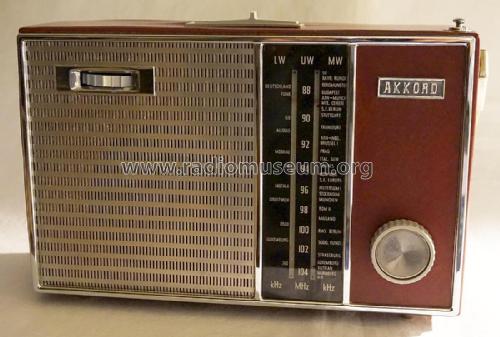

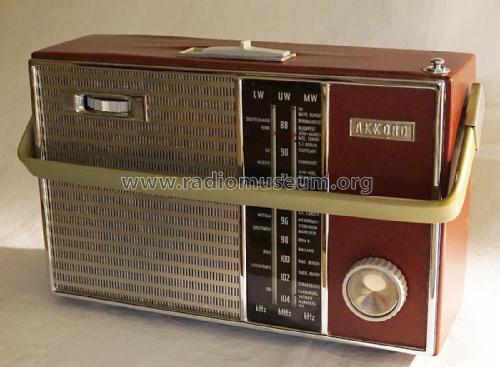

Akkord-Radio +: Filou 701/5300 [Radio] ID = 1960775 1400x1050

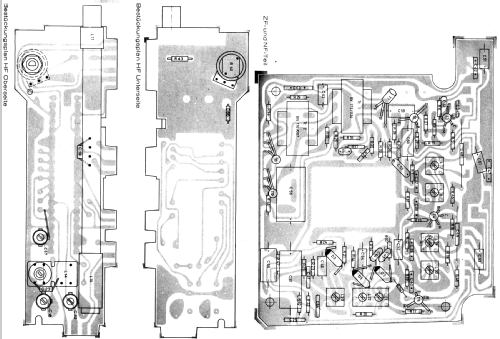

Select picture or schematic to display from thumbnails on the right and click for download.
For model Filou 701/5300, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/6750 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)

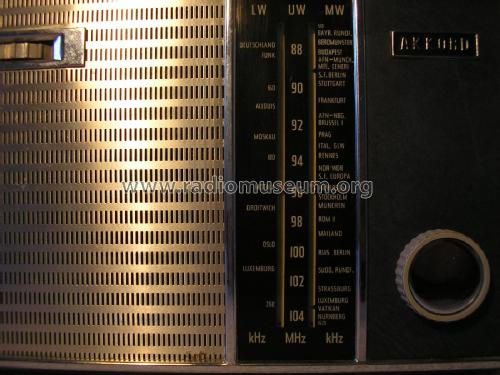

Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Filou 701/5300 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 254 x 165 x 82 mm / 10 x 6.5 x 3.2 inch

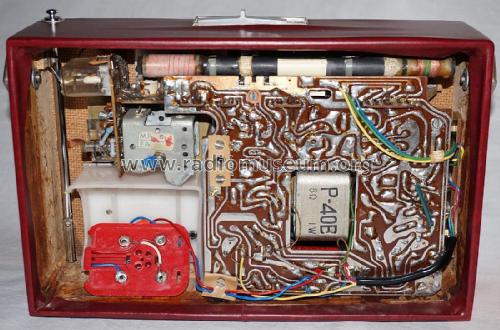

Notes Transitoren: AF102, AF125, 3× AF126, 2× OC71, 2× OC74.
Netzbetrieb (220 V) mit Netzteil NT680B (Mehrpreis 50,- DM) möglich.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 271.00 DM
Collectors' prices
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 176 with images and 142 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
