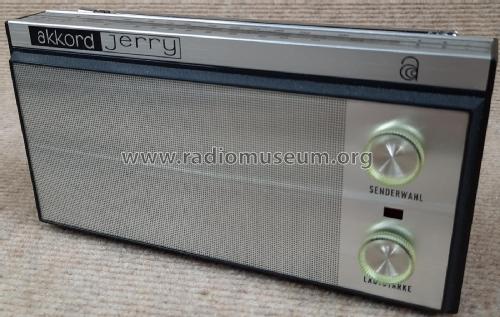

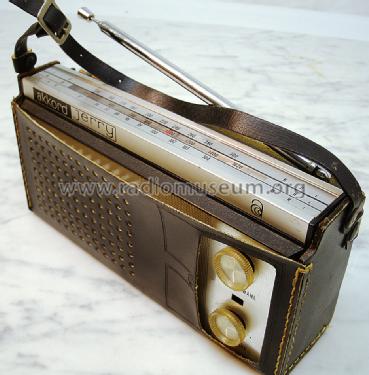

Akkord-Radio +: Jerry L [Radio] ID = 27878 600x346
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jerry L, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SB54 2SB54 2SB56 2SB56 2SA240 2SA240 2SA433 2SA77 2SA77
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Jerry L - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 190 x 95 x 50 mm / 7.5 x 3.7 x 2 inch
Notes Wurde mit UKW/MW - LW als Jerry L gebaut und mit UKW/MW - KW als Jerry K. Sind japanische Produktionen.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 115.00 DM
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1967/1968
