Jonny 760/95390

Jonny 760/95390; Akkord-Radio + (ID = 107529) Radio

Jonny 760/95390; Akkord-Radio + (ID = 107530) Radio

Jonny 760/95390; Akkord-Radio + (ID = 107533) Radio

Jonny 760/95390; Akkord-Radio + (ID = 842634) Radio

Jonny 760/95390; Akkord-Radio + (ID = 842635) Radio
Jonny 760/95390; Akkord-Radio + (ID = 2343005) Radio Jonny 760/95390; Akkord-Radio + (ID = 1302193) Radio
Jonny 760/95390; Akkord-Radio + (ID = 876839) Radio Jonny 760/95390; Akkord-Radio + (ID = 876840) Radio
Jonny 760/95390; Akkord-Radio + (ID = 876841) Radio Jonny 760/95390; Akkord-Radio + (ID = 876842) Radio
Jonny 760/95390; Akkord-Radio + (ID = 876843) Radio Jonny 760/95390; Akkord-Radio + (ID = 27929) Radio
Use red slider bar for more.
Jonny 760/95390; Akkord-Radio + (ID = 2343005) Radio
Akkord-Radio +: Jonny 760/95390 [Radio] ID = 2343005 1400x844
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jonny 760/95390, Akkord-Radio + Akkord Elektronik (Radios):

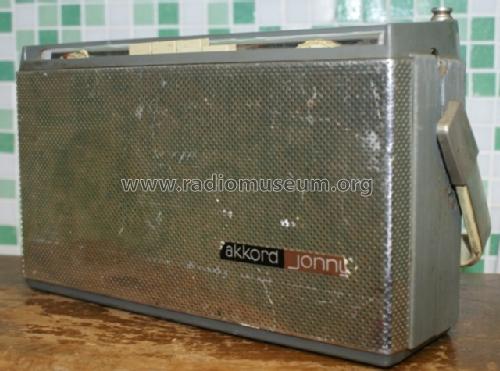

Frontalansicht mit Schriftzug in rot

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF134 AF135 AF136 AF138 AF137 AC122 AC122 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Jonny 760/95390 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 152 x 78 mm / 9.4 x 6 x 3.1 inch
Notes

Betrieb mit externem Netzteil möglich.

Produktion Blaupunkt, siehe auch Lido W 95.300

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

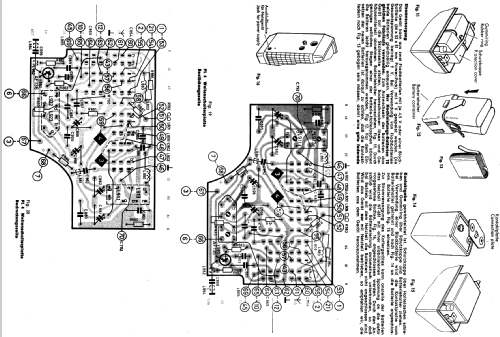

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
Here you find 198 models, 180 with images and 143 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
