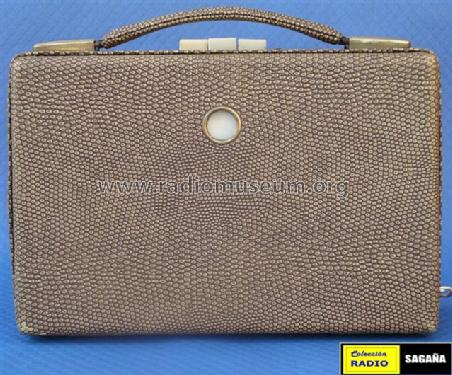

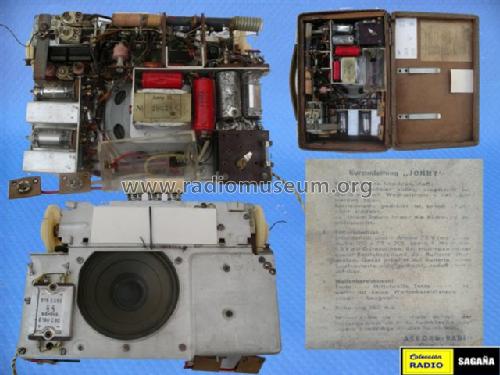

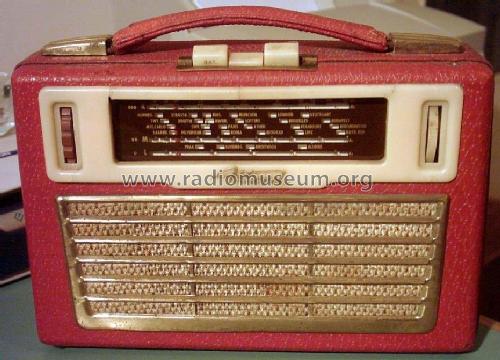

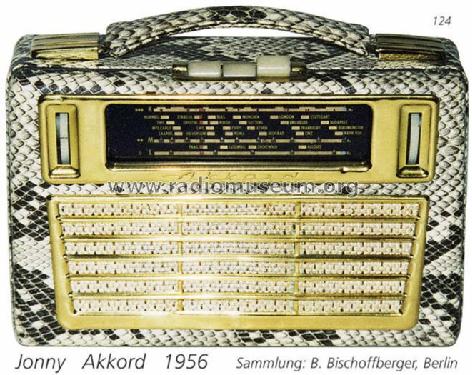

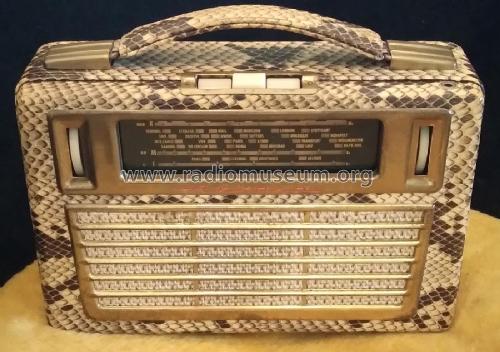

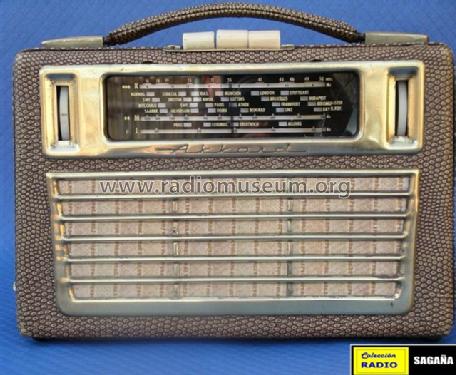

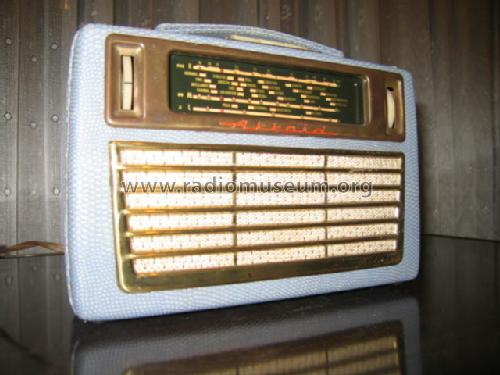

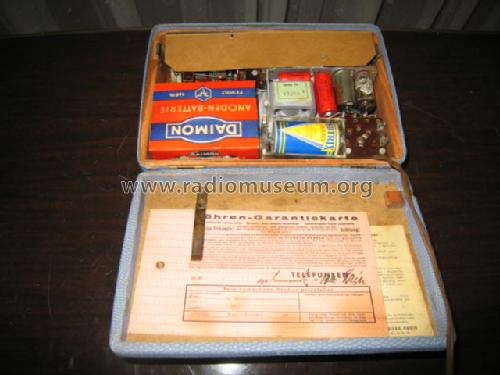

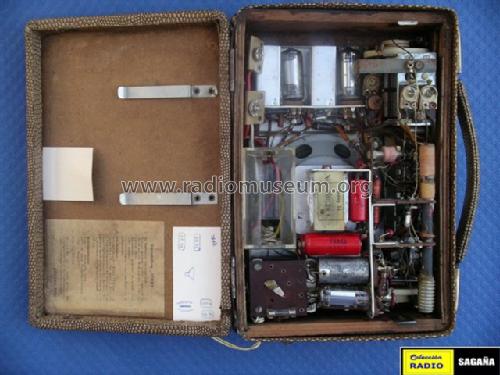

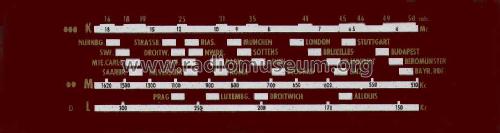

Akkord-Radio +: Jonny K56 [Radio] ID = 71 662x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jonny K56, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 150; 220; 240 / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Jonny K56 - Akkord-Radio + Akkord
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 236 x 160 x 76 mm / 9.3 x 6.3 x 3 inch
Notes Auch Teil vom Titelbild "Radiokatalog" Band 1
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 159.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
