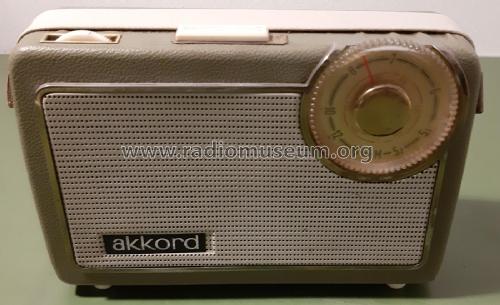

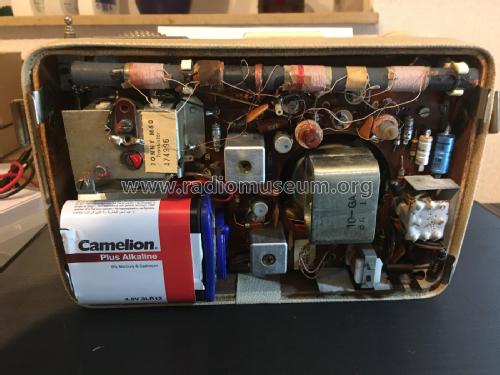

Akkord Jonny-M60 Front

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: OC169 OC169 OC70 OC74 OC74 OA172 K5/2
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Jonny M60 500/2600 - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 150 x 65 mm / 8.3 x 5.9 x 2.6 inch
Notes .
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 139.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1960/61 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
