• Country
• Germany

• Manufacturer / Brand
• Akkord-Radio + Akkord Elektronik (Radios)

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180625

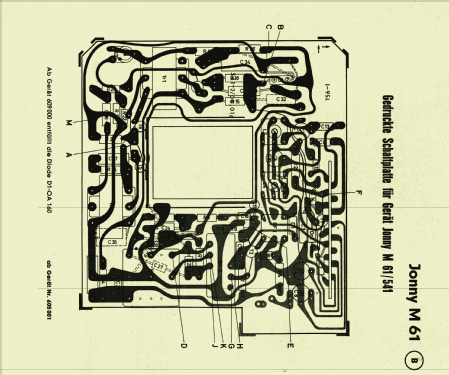

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• E25C5 AF105 AF105 AF105 OC304 OC308 OC308 OA90

• Main principle
• Superheterodyne (common); 2 AF stage(s); none

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Jonny M61/541B [ab Nr.605001] - Akkord-Radio + Akkord

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 220 x 150 x 75 mm / 8.7 x 5.9 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1.115 kg / 2 lb 7.3 oz (2.456 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.

• Other Models

• Here you find 200 models, 181 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
