Kessy 830/6700

Kessy 830/6700; Akkord-Radio + (ID = 554754) Radio

Kessy 830/6700; Akkord-Radio + (ID = 554755) Radio

Kessy 830/6700; Akkord-Radio + (ID = 554816) Radio

Kessy 830/6700; Akkord-Radio + (ID = 554818) Radio

Kessy 830/6700; Akkord-Radio + (ID = 554762) Radio

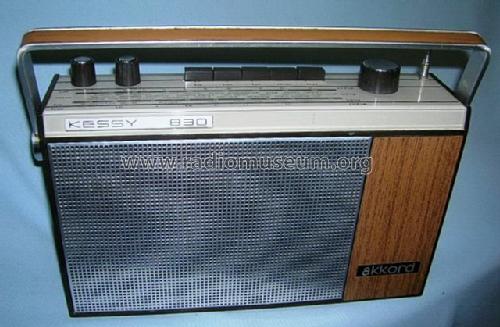

Kessy 830/6700; Akkord-Radio + (ID = 1706905) Radio Kessy 830/6700; Akkord-Radio + (ID = 568924) Radio
Kessy 830/6700; Akkord-Radio + (ID = 568931) Radio Kessy 830/6700; Akkord-Radio + (ID = 568926) Radio
Kessy 830/6700; Akkord-Radio + (ID = 236423) Radio Kessy 830/6700; Akkord-Radio + (ID = 568932) Radio
Kessy 830/6700; Akkord-Radio + (ID = 568933) Radio Kessy 830/6700; Akkord-Radio + (ID = 586489) Radio
Kessy 830/6700; Akkord-Radio + (ID = 586490) Radio Kessy 830/6700; Akkord-Radio + (ID = 586491) Radio
Use red slider bar for more.
Kessy 830/6700; Akkord-Radio + (ID = 1706905) Radio
Akkord-Radio +: Kessy 830/6700 [Radio] ID = 1706905 933x888
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kessy 830/6700, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF121 AF121 AF125 AF126 AF126 AF126 AC125 AC125 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Kessy 830/6700 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 75 mm / 11 x 6.7 x 3 inch
Notes

Netzbetrieb mit zusätzlichem Netzteil möglich.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 215.00 DM
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1967/1968
Literature/Schematics (1) -- Original-techn. papers.
