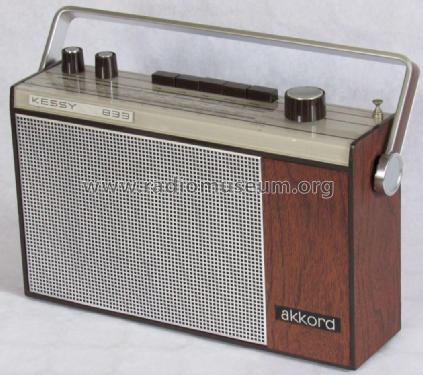

Kessy 833; Akkord-Radio + (ID = 1784413) Radio
Akkord-Radio +: Kessy 833 [Radio] ID = 1784413 1053x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kessy 833, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1967–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 2×4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Kessy 833 - Akkord-Radio + Akkord
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 75 mm / 11 x 6.7 x 3 inch
Notes Transistoren: 2× AF121, AF125, 3× AF126, 2× AC125, AC187, AC188.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 225.00 DM
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb
