For model Phono-Max, Akkord-Radio + Akkord Elektronik (Radios):
Akkord Phono-Max 1954/55

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1954/1955 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Line / Batteries (any type) / 110; 125; 220 / 4 × 1,5 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Phono-Max - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 250 x 90 mm / 12.6 x 9.8 x 3.5 inch
Notes Nur für 45-er Platten. Kristalltonabnehmer, 40-14000 Hz.
Kann auch ohne Netzteil geliefert werden (dann 97,- DM).
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 127.00 DM
External source of data Erb

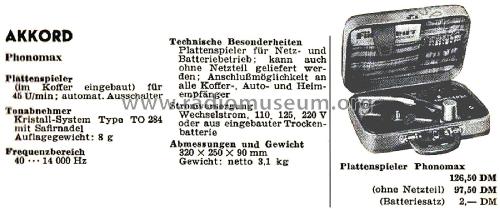

Source of data Rundfunk- und Fernseh-Katalog 1954/55
