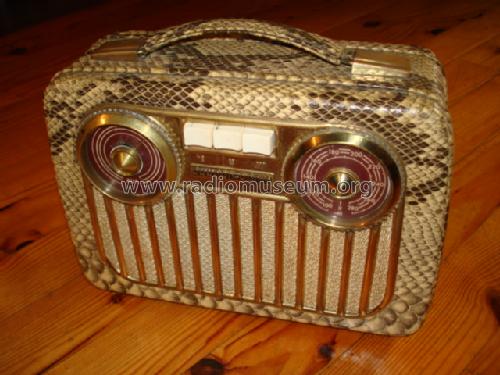

Pinguin M54; Akkord-Radio + (ID = 640810) Radio Pinguin M54; Akkord-Radio + (ID = 640813) Radio
Pinguin M54; Akkord-Radio + (ID = 640816) Radio Pinguin M54; Akkord-Radio + (ID = 329561) Radio
Use red slider bar for more.
Pinguin M54; Akkord-Radio + (ID = 2269228) Radio
Akkord-Radio +: Pinguin M54 [Radio] ID = 2269228 900x873
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pinguin M54 Kunstleder, Akkord-Radio + Akkord Elektronik (Radios):
D; Akkord Radio, Offenbach; Modell M54 Snakeskin - 2

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 220 / 1,5 & 100 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Pinguin M54 [Kunstleder] - Akkord-Radio + Akkord
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 200 x 100 mm / 10.4 x 7.9 x 3.9 inch
Notes Kunstlederbezug, siehe auch Modell mit Lederbezug.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 196.00 DM
Source of data Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
