Tobby 518 Rückdeckel Holz

Tobby 518; Akkord-Radio + (ID = 2346380) Radio Tobby 518; Akkord-Radio + (ID = 2346381) Radio
Tobby 518; Akkord-Radio + (ID = 2346382) Radio Tobby 518; Akkord-Radio + (ID = 2346383) Radio
Tobby 518; Akkord-Radio + (ID = 2346384) Radio Tobby 518; Akkord-Radio + (ID = 2346385) Radio
Tobby 518; Akkord-Radio + (ID = 2346386) Radio Tobby 518; Akkord-Radio + (ID = 2346389) Radio
Use red slider bar for more.

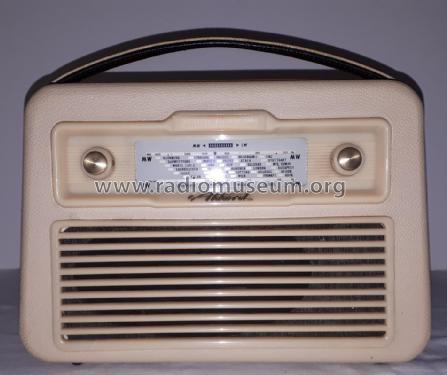

Tobby 518; Akkord-Radio + (ID = 2346380) Radio
Akkord-Radio +: Tobby 518 [Radio] ID = 2346380 1400x1173
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tobby 518 Rückdeckel Holz, Akkord-Radio + Akkord Elektronik (Radios)

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: GFT44 GFT45 GFT45 GFT20 GFT21 GFT20 GFT20 K5/2 K5/2
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1 x 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Tobby 518 [Rückdeckel Holz] - Akkord-Radio + Akkord
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 195 x 115 mm / 11 x 7.7 x 4.5 inch
Notes

Tobby 518 Modell 1958 - Holzgehäuse und Holz-Rückdeckel.

Siehe auch Akkord Tobby 518 mit Holzgehäuse und kaschierter Hartfaserrückwand

Net weight (2.2 lb = 1 kg) 2.350 kg / 5 lb 2.8 oz (5.176 lb)
