For model Transola, Akkord-Radio + Akkord Elektronik (Radios):

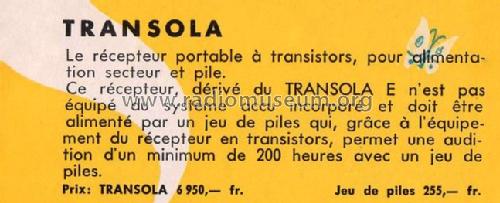

Bild aus Prospekt

Country:  Germany
Manufacturer / Brand:  Akkord-Radio + Akkord Elektronik (Radios)
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF97 DF96 DK96 DF96 DF96
Semiconductors (the count is only for transistors) OC72 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 468/6750 kHz; Reflex
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 150; 220; 240 / 6 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Transola - Akkord-Radio + Akkord
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 210 x 105 mm / 12.4 x 8.3 x 4.1 inch
Notes Ohne DEAC-Zelle.
Die erste DF96 (AM-Vorstufe oder 1. FM-ZF Stufe) wird bei
UKW in Reflexschaltung als NF-Vorstufe verwendet.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 1
