Amtsverstärker 20W 502/70

Amtsverstärker 20W 502/70; Albis, Albiswerke AG (ID = 1528912) Ampl/Mixer
Use red slider bar for more.
Amtsverstärker 20W 502/70; Albis, Albiswerke AG (ID = 1528912) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1957 Category: Audio Amplifier or -mixer
Valves / Tubes 5: ECC83 E83F E80F EL34 EL34
Semiconductors (the count is only for transistors) Selen Selen Selen Selen
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker
Power out 20 W (undistorted)
from Radiomuseum.org Model: Amtsverstärker 20W 502/70 - Albis, Albiswerke AG Siemens
Material Metal case, TUBES VISIBLE
Shape Rack
Dimensions (WHD) 445 x 260 x 120 mm / 17.5 x 10.2 x 4.7 inch

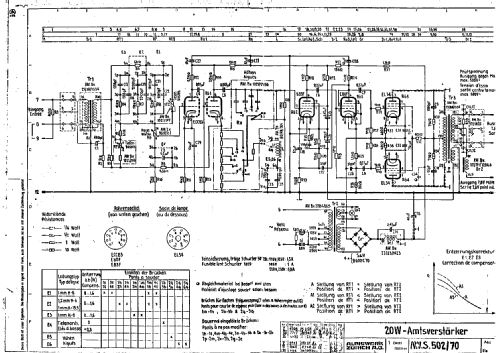

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Walter Vollenweider. See "Data change" for further contributors.
