• Country
• Switzerland

• Manufacturer / Brand
• Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11132

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• RE134 RGN354

• Main principle
• Audio-Amplification; 1 AF stage(s)

• Wave bands
• - without

• Details
• Wired Wireless Receiver(AF only)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles).

• from Radiomuseum.org

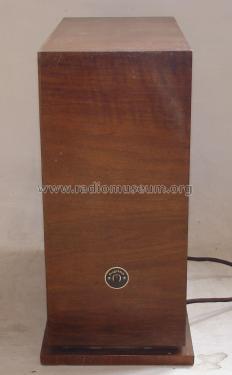

• Model: NF-Telefonrundspruch TR II - Albis, Albiswerke AG Siemens

• Dimensions (WHD)
• 425 x 425 x 210 mm / 16.7 x 16.7 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
