Studioverstärker 8W Albis 502/62

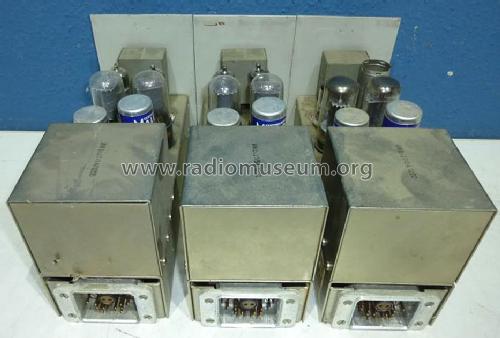

Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501171) Ampl/Mixer Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501173) Ampl/Mixer

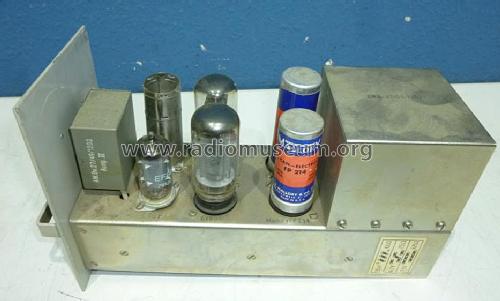

Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501174) Ampl/Mixer Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501175) Ampl/Mixer

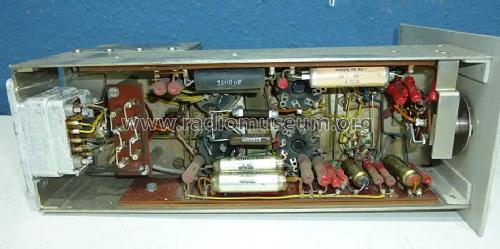

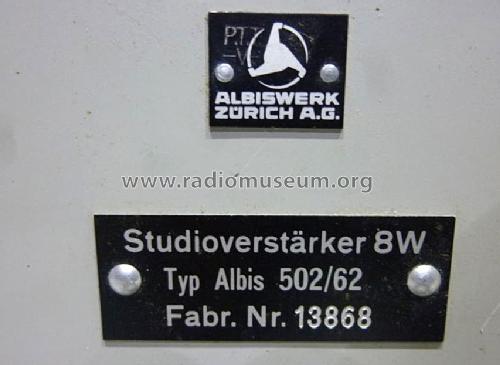

Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501176) Ampl/Mixer Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501165) Ampl/Mixer
Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501166) Ampl/Mixer Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501179) Ampl/Mixer
Use red slider bar for more.
Studioverstärker 8W Albis 502/62; Albis, Albiswerke AG (ID = 1501171) Ampl/Mixer
Albis, Albiswerke AG: Studioverstärker 8W Albis 502/62 [Ampl/Mixer] ID = 1501171 933x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model Studioverstärker 8W Albis 502/62, Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden:
Source: ebay.de, atlantik13, item 261240219017

Country:  Switzerland
Manufacturer / Brand:  Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
Year: 1961 ? Category: Audio Amplifier or -mixer
Valves / Tubes 4: E80F E80F 6V6GT 6V6GT
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 6,3 & ? Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (undistorted)
from Radiomuseum.org Model: Studioverstärker 8W Albis 502/62 - Albis, Albiswerke AG Siemens
Material Metal case
Shape Chassis only or for «building in»
Notes

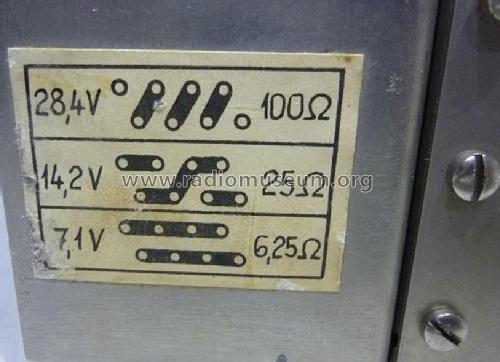

Albis Studioverstärker-Einschub 502/62. Eingang erdfrei trafosymmetrisch. Ausgangsimpedanzen: 6,25 Ω (7,1 V), 25 Ω (14,2 V) oder 100 Ω (28,4 V) umschaltbar.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
