Rekord - Рекорд 64

Rekord - Рекорд 64; Aleksandrov Radio (ID = 941820) Television
Use red slider bar for more.
Rekord - Рекорд 64; Aleksandrov Radio (ID = 941820) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Soviet Union
Manufacturer / Brand:  Aleksandrov Radio Works (ARZ)
alternative name

Alexandrov
Year: 1960 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: 6Н14П 6Ф1П 6Ж1П 6Ж1П 6Ф1П 6П15П 6Ф1П 6П14П 6Н1П 6Ф1П 6П14П 6П13С 6Ц10П 1Ц11П 35ЛК2Б
Main principle Super-Heterodyne (Super in general)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Rekord - Рекорд 64 - Aleksandrov Radio Works ARZ
Material Wooden case
Shape Tablemodel, low profile (big size).

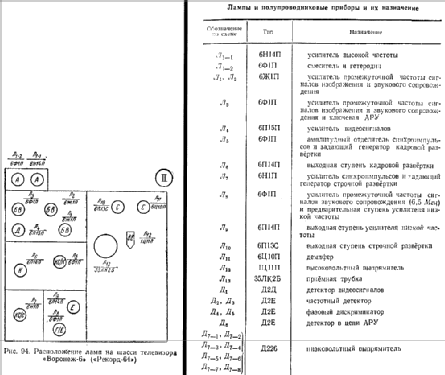

Literature/Schematics (1) G.P. Samojlov, 1965

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Aleksandrov Radio Works (ARZ)
Here you find 37 models, 34 with images and 29 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
